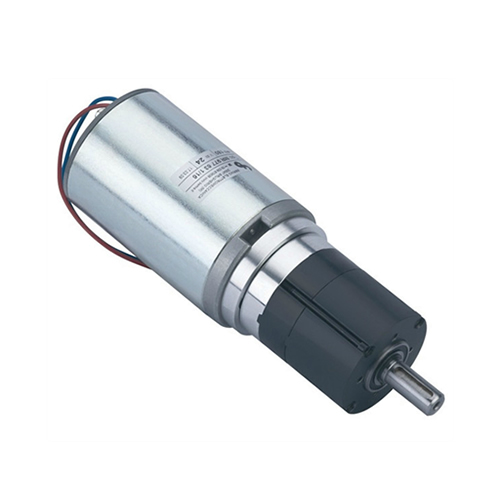

MR977 63

作者: 发布时间:2015-07-28 05:23:39 阅读数:1586
产品介绍 / Product introduction

型号Type

减速比Ratio

L
mm
* 空载转速R.P.M. no load
min-1
* 转速R.P.M. S1
min-1
扭矩S1 Torque
Nm
*转速 R.P.M. S2
min-1
扭矩S2 Torque
Nm
最大扭矩Max Torque
Nm
I max
A
MR 977 63 1/4 4 189 725 630 0.85 517 1.8 6 25
MR 977 63 1/6 6 189 480 415 1.3 346 2.6 9 25
MR 977 63 1/16 16 209 180 154 3.4 126 7 23 25
MR 977 63 1/24 24 209 120 103 4.4 86 8.9 31 25
MR 977 63 1/36 36 209 80 65 7.3 56 15.1 51 25
MR 977 63 1/64 64 229 47 40 14 33.5 24 85 25
MR 977 63 1/96 96 229 30 25 17 21 35 85 18
MR 977 63 1/144 144 229 20 17 23 13.8 52 85 12
MR 977 63 1/216 216 229 13.8 13 30 9.8 74 85 9

Length "L" of the gearmotor as a funtion of reduction and outlet number of revolution with the standard motor
977 120 output W 3300 Rpm loadness, 12/24 Vdc. Starting corrent 25 A.
Driving shaft supported by self lubrificanting bushings. Outlet shaft supported by two coupled screened bearings. The
motor and the reduction gear are both plated for corrosion strength.
Connecting 2 wire 1 x 300 mm.
* The rotation speed can change of ±10%.
The S1 load test was made using a 3,8 A corrent in the air with an increase of temperature of 70° C.
The S2 test was made using a 7,5 A corrent in the air with a 50% timing 5`with an increase of temperature
of 80° C max.
The starting corrent (I max) cannot be maintained for more than 2".
Max forces which may act on the outlet shaft: Axial 30 kg, Radial 40 kg on the extremity of outlet shaft.
Possibility to apply other motor.
